STITCHmaster – STALLION

Programmable

Imported Stitcher
Heads

8mm Thickness
Capacity

1 to 4
Head Capacity

Programmable

Imported Stitcher
Heads

8mm Thickness
Capacity

1 to 4
Head Capacity

Programmable

Imported Stitcher
Heads

8mm Thickness
Capacity

1 to 4
Head Capacity

Programmable

Imported Stitcher
Heads

8mm Thickness
Capacity

1 to 4
Head Capacity

Programmable

8mm Thickness
Capacity

1 to 4
Head Capacity

Imported Stitcher
Heads

Multi Head - Faster Speed
Upto 24 stitches per book possible
Precise distance between two stitches
Minimum distance between two stitches possible
Short make ready time

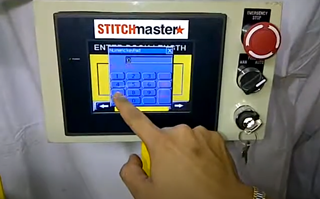

Touch Screen Programming

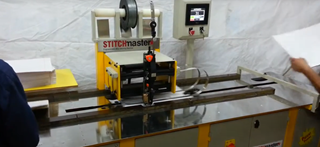

Feed Gathered papers or book-blocks into the machine.
The Gripper Jaw automatically carries the papers/book-block further for stitching.
Enter a Program with length of book, number of stitches & Heads and distance between stitches in 20 programs memory.
You can achieve upto 12 stitches in one section (minimum distance between stitches: 20mm) in this unique machine with superb quality stitch and long life.

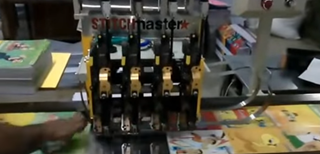

The imported stitching heads installed in the machine give superb quality stitch and long life.
STITCHmaster can be online attached to STALLION FOLDmaster : Book Folding Machine.
The STITCHmaster works on a Hi-Tech Servo electronic drive and motor combination.
STITCHmaster is available with 1 or 4 stitching heads for variable production speed requirements.

TECHNICAL SPECIFICATIONS
SPECIFICATIONS	Max.		Min.
Speed	Upto 30 sections / minute
Book Length	890mm		90mm
Book Length
Book width	440mm		280mm
	(Centre Stitch)(open book)
	220mm		130mm
	(Side Stitch)
Book Thickness	8mm		2 Sheets
Wire Size	24-26 SWG (Dia. 0.60 – 0.50mm)
Power	3 hp(2.3 kw), 415V, 50Hz, AC
Power	Actual power consumption in operation : 1.5 kw
Dimensions	2500 x 1000 x 1500 mm (L x W x H)
