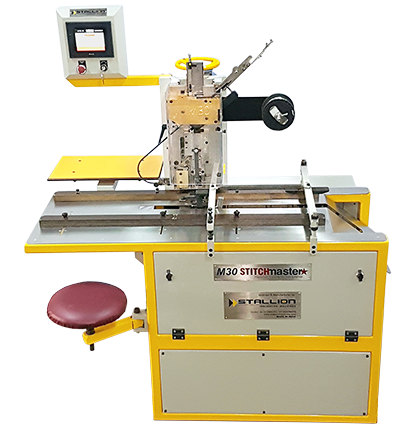

M30-STITCHmaster – STALLION

PROGRAMMABLE

DELUXE (USA)
Stitcher Head

30mm Thickness
Capacity

CE

PROGRAMMABLE

DELUXE (USA)
Stitcher Head

30mm Thickness
Capacity

CE

PROGRAMMABLE

DELUXE (USA)
Stitcher Head

30mm Thickness
Capacity

CE

PROGRAMMABLE

DELUXE (USA)
Stitcher Head

30mm Thickness
Capacity

CE

Single Head – Multiple Stitches
Upto 12 stitches per book possible
Precise distance between two stitches
Minimum distance between two stitches possible
Short make ready time

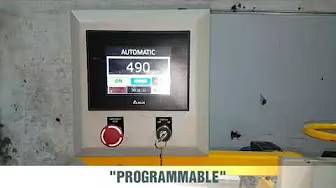

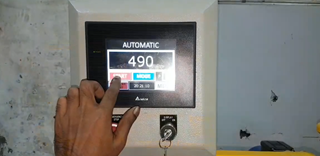

Touch Screen Programming
20 Programs Memory
Accuracy with Consistancy
No skilled labour required
Ergonomic Design
Cost Effective & Economic

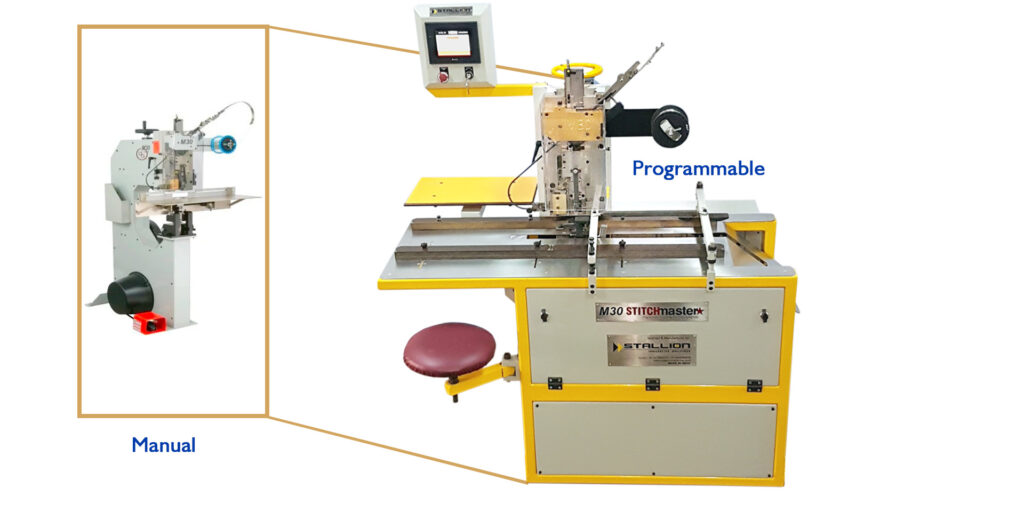

The M30-STITCHmaster makes the stitch at exact location as set.

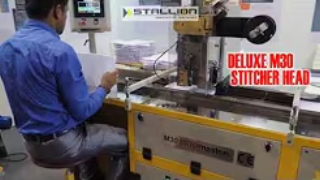

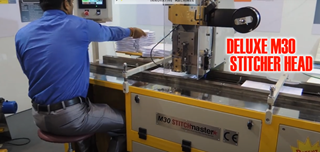

The Deluxe M30 stitcher head installed in the machine gives superb quality stitch and long life.
The M30-STITCHmaster works on a Hi-Tech Servo drive and motor combination.
M30-STITCHmaster can be online attached to STALLION TAPEmaster : Automatic Spine Taping Machine
Machine is suitable for Side Stitch only.

Feed Gathered papers or book-blocks into the machine.
The Gripper Jaw automatically carries the papers/book-block further for stitching.
Enter a Program with length of book, number of stitches & Heads and distance between stitches in 20 programs memory.
You can achieve upto 12 stitches in one section (minimum distance between stitches: 30mm) in this unique machine with superb quality stitch and long life using American Deluxe G30 Stitcher Head.
The M30-STITCHmaster makes the stitch at exact location as set.
The Deluxe M30 stitcher head installed in the machine gives superb quality stitch and long life.
The M30-STITCHmaster works on a Hi-Tech Servo drive and motor combination.
M30-STITCHmaster can be online attached to STALLION TAPEmaster : Automatic Spine Taping Machine
Machine is suitable for Side Stitch only.

TECHNICAL SPECIFICATIONS
SPECIFICATIONS	Max.	Min.
Speed	Upto 25 sections / minute
Book Length	600mm	90mm
Book Length	Can be customised as per requirement to achieve more cycles/minute.
Book width	330mm	100mm
Book width	(Side Stitch)
Book Thickness	30mm	2 Sheets
Book Thickness	(Stab Stitch upto 60mm)
Wire Size	18x20, 19x21-1/2, 20x24, 20x25 and 21x25 Flat
Power	3 hp(2.25 kw) 50Hz, 415V, AC
Power	Actual power consumption in operation : 1 kw
Dimensions	1450 x 1400 x 1650 mm (L x W x H)
