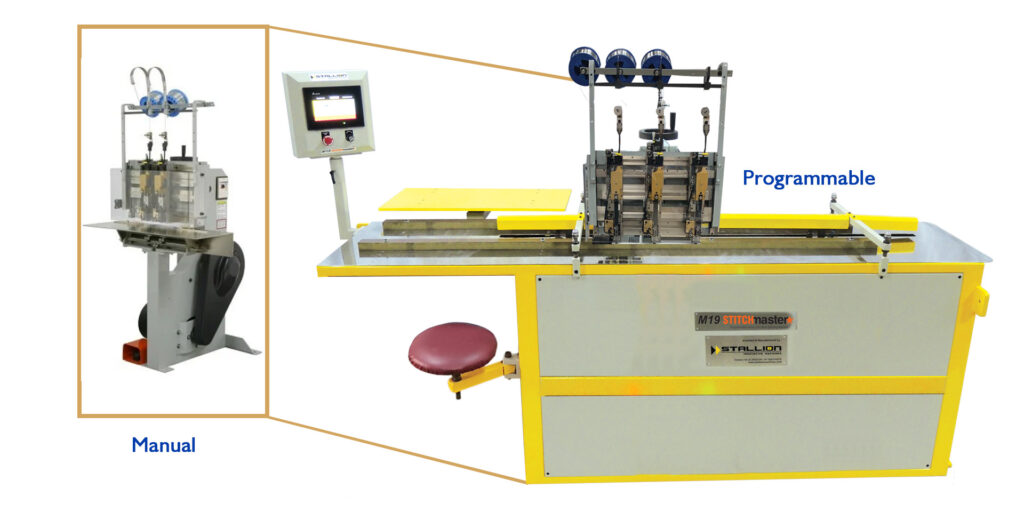

PROGRAMMABLE
DELUXE M27 (USA)
Stitching Machine
20mm Thickness
Capacity
1 to 4 G20
Stitcher Head
PROGRAMMABLE
DELUXE M27 (USA)
Stitching Machine
20mm Thickness
Capacity
1 to 4 G20
Stitcher Head
- Multi Head - Faster Speed
- Upto 24 stitches per book possible
- Precise distance between two stitches
- Minimum distance between two stitches possible
- Short make ready time
- Touch Screen Programming
- 20 Programs Memory
- Accuracy with Consistancy
- No skilled labour required
- Ergonomic Design
- Cost Effective & Economic
- Feed Gathered papers or book-blocks manually into the machine in open form before folding.
- The Gripper Jaw automatically carries the papers/book-block further for stitching.
- Enter a Program with length of book, number of stitches & Heads and distance between stitches in 20 programs memory.
- You can achieve upto 24 stitches in one section (minimum distance between stitches: 20mm) in this unique machine with superb quality stitch and long life using American Deluxe G20 Stitcher Head.
- Machine is suitable for Side as well as Center Flat book Stitch.
- M27-STITCHmaster can be online attached to STALLION FOLDmaster : Book Folding Machine.
| TECHNICAL SPECIFICATIONS | ||||
|---|---|---|---|---|
| SPECIFICATIONS | Max. | Min. | ||
| Speed | Upto 30 sections / minute | |||
| Book Length | 800mm | 90mm | ||
| Can be customised as per requirement to achieve more cycles/minute. | ||||
| Book width | 400mm | 280mm | ||
| (Centre Stitch)(open book) | ||||
| 300mm | 160mm | |||
| (Side Stitch) | ||||
| Book Thickness | 20mm | 2 Sheets | ||
| Wire Size | 20 to 24 SWG Round or 19x21-1/2, 20x24 and 21x25 Flat | |||
| Power | 3 hp(2.4 kw), 415V, 50Hz, AC | |||
| Actual power consumption in operation : 1 kw | ||||
| Dimensions | 2500 x 1000 x 1500 mm (L x W x H) | |||
