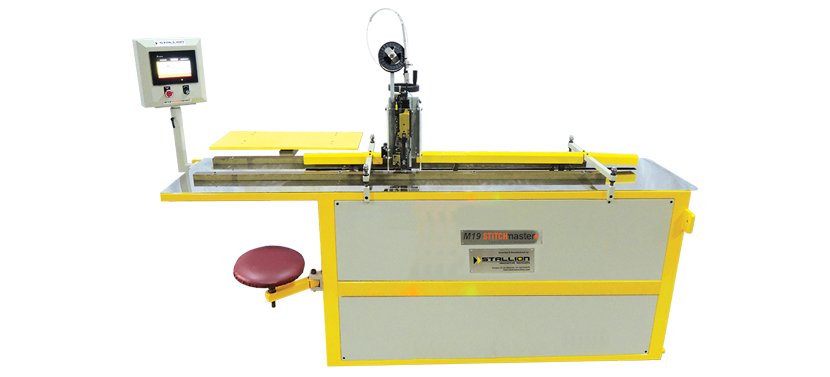

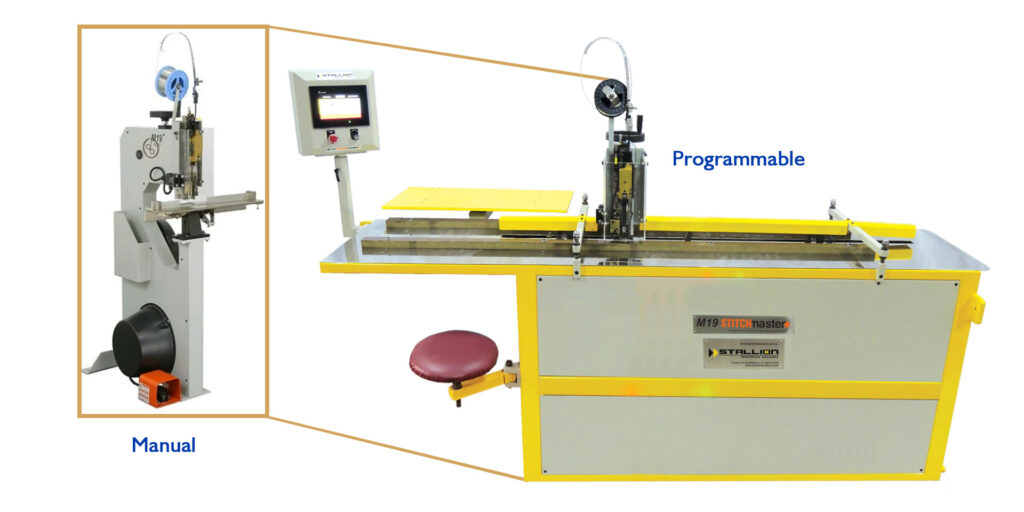

M19-STITCHmaster – STALLION

PROGRAMMABLE

DELUXE M19 (USA)
Stitching Machine

20mm Thickness
Capacity

Single G20
Stitcher Head

PROGRAMMABLE

DELUXE M19 (USA)
Stitching Machine

20mm Thickness
Capacity

Single G20
Stitcher Head

PROGRAMMABLE

DELUXE M19 (USA)
Stitching Machine

20mm Thickness
Capacity

Single G20
Stitcher Head

PROGRAMMABLE

DELUXE M19 (USA)
Stitching Machine

20mm Thickness
Capacity

Single G20
Stitcher Head

PROGRAMMABLE

DELUXE M19 (USA)
Stitching Machine

20mm Thickness
Capacity

Single G20
Stitcher Head

Single Head – Multiple Stitches
Upto 24 stitches per book possible
Precise distance between two stitches
Minimum distance between two stitches possible
Short make ready time
Touch Screen Programming
20 Programs Memory
Accuracy with Consistancy
No skilled labour required
Ergonomic Design
Cost Effective & Economic

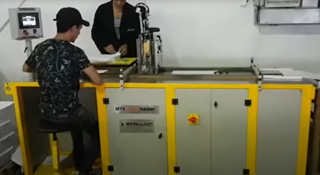

Feed Gathered papers or book-blocks manually into the machine in open form before folding.
The Gripper Jaw automatically carries the papers/book-block further for stitching.
Enter a Program with length of book, number of stitches & Heads and distance between stitches in 20 programs memory.
You can achieve upto 24 stitches in one section (minimum distance between stitches: 20mm) in this unique machine with superb quality stitch and long life using American Deluxe G20 Stitcher Head.
Machine is suitable for Side as well as Center Flat book Stitch.
M19-STITCHmaster can be online attached to STALLION FOLDmaster : Book Folding Machine.

TECHNICAL SPECIFICATIONS
SPECIFICATIONS	Max.	Min.
Speed	Upto 30 sections / minute
Book Length	800mm	90mm
Book Length	Can be customised as per requirement to achieve more cycles/minute.
Book width	400mm	280mm
	(Centre Stitch)(open book)
	300mm	160mm
	(Side Stitch)
Book Thickness	20mm	2 Sheets
Wire Size	20 to 24 SWG Round or 19x21-1/2, 20x24 and 21x25 Flat
Power	3 hp(2.4 kw), 415V, 50Hz, AC
Power	Actual power consumption in operation : 1 kw
Dimensions	2500 x 1000 x 1500 mm (L x W x H)

Single Head – Multiple Stitches
Upto 24 stitches per book possible
Precise distance between two stitches
Minimum distance between two stitches possible
Short make ready time
Touch Screen Programming
20 Programs Memory
Accuracy with Consistancy
No skilled labour required
Ergonomic Design
Cost Effective & Economic

Feed Gathered papers or book-blocks manually into the machine in open form before folding.
The Gripper Jaw automatically carries the papers/book-block further for stitching.
Enter a Program with length of book, number of stitches & Heads and distance between stitches in 20 programs memory.
You can achieve upto 24 stitches in one section (minimum distance between stitches: 20mm) in this unique machine with superb quality stitch and long life using American Deluxe G20 Stitcher Head.
Machine is suitable for Side as well as Center Flat book Stitch.
M19-STITCHmaster can be online attached to STALLION FOLDmaster : Book Folding Machine.

TECHNICAL SPECIFICATIONS
SPECIFICATIONS	Max.	Min.
Speed	Upto 30 sections / minute
Book Length	800mm	90mm
Book Length	Can be customised as per requirement to achieve more cycles/minute.
Book width	400mm	280mm
	(Centre Stitch)(open book)
	300mm	160mm
	(Side Stitch)
Book Thickness	20mm	2 Sheets
Wire Size	20 to 24 SWG Round or 19x21-1/2, 20x24 and 21x25 Flat
Power	3 hp(2.4 kw), 415V, 50Hz, AC
Power	Actual power consumption in operation : 1 kw
Dimensions	2500 x 1000 x 1500 mm (L x W x H)
